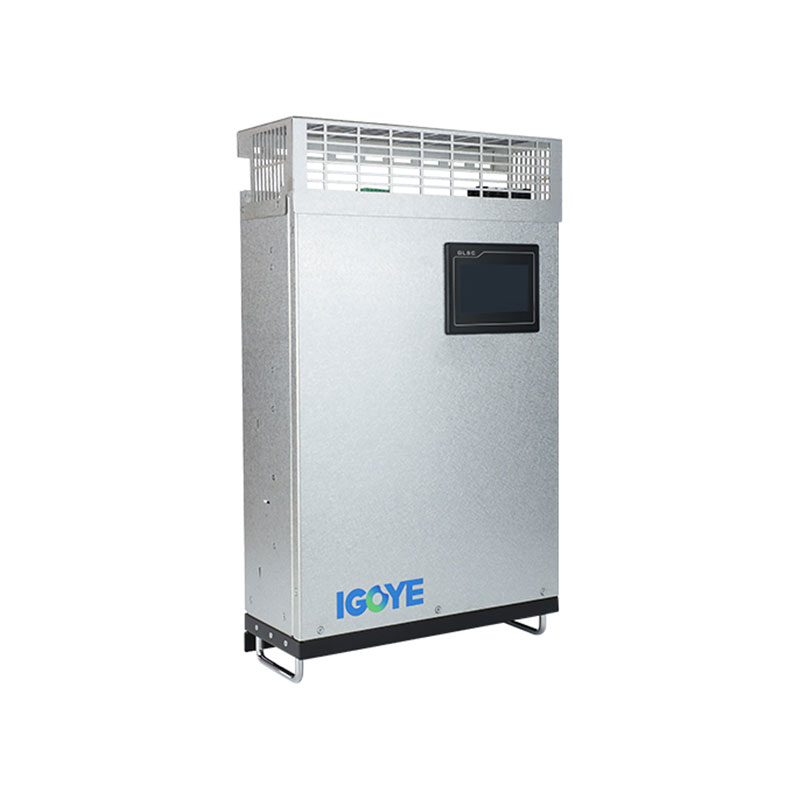

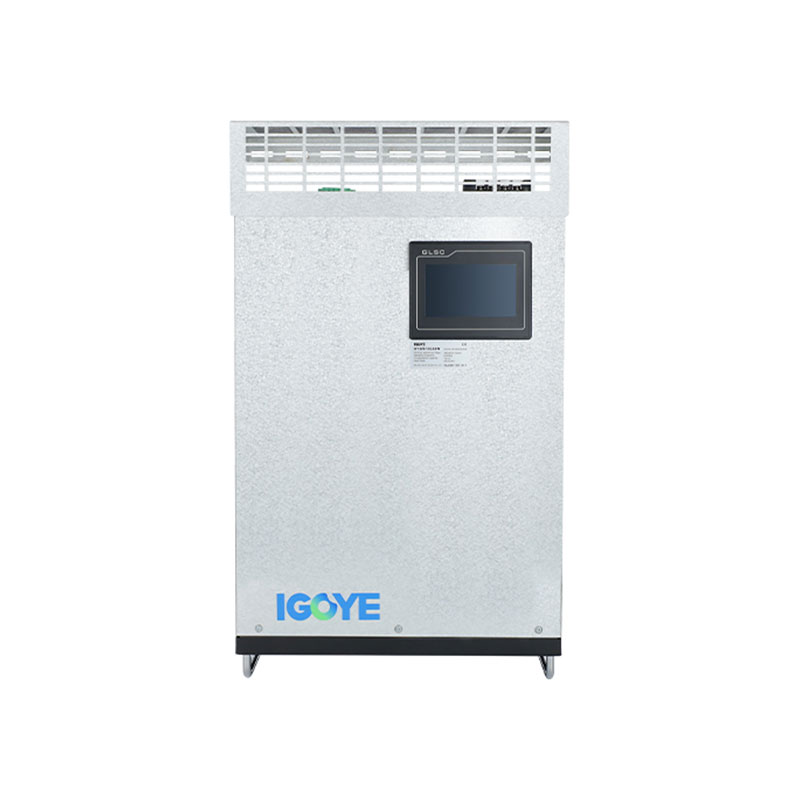

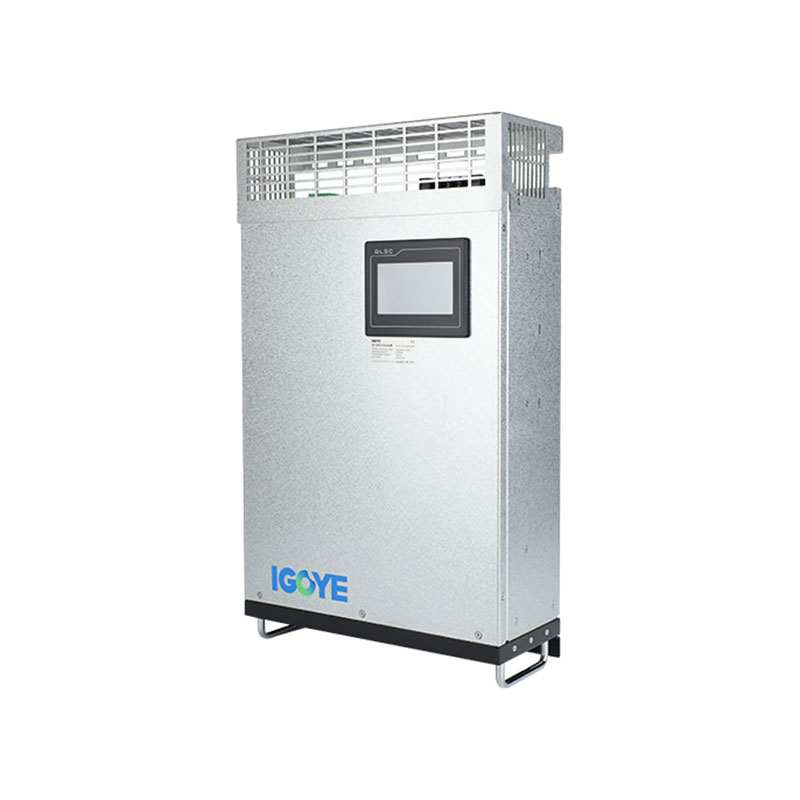

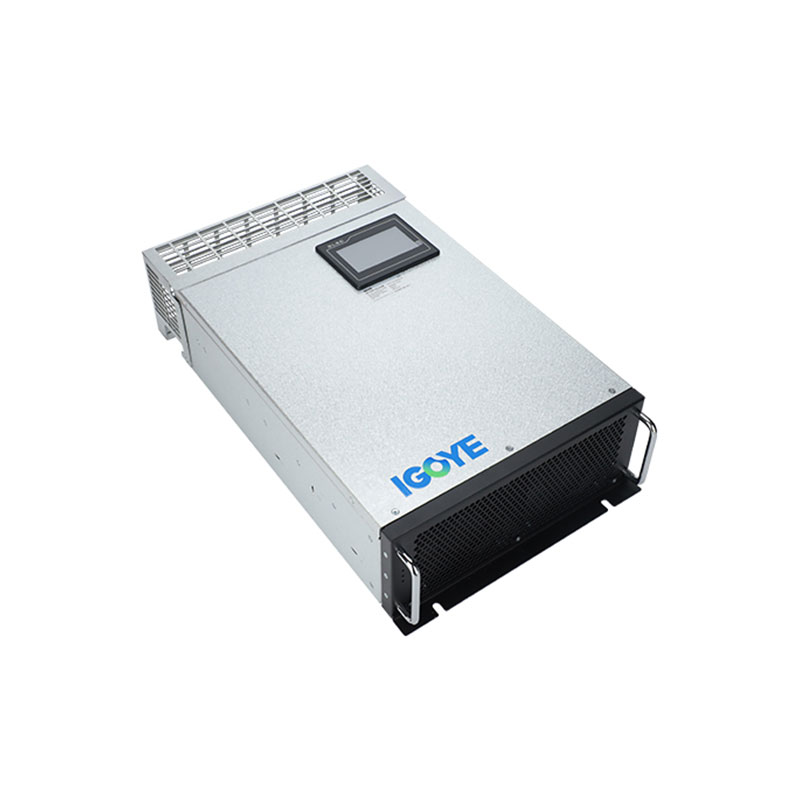

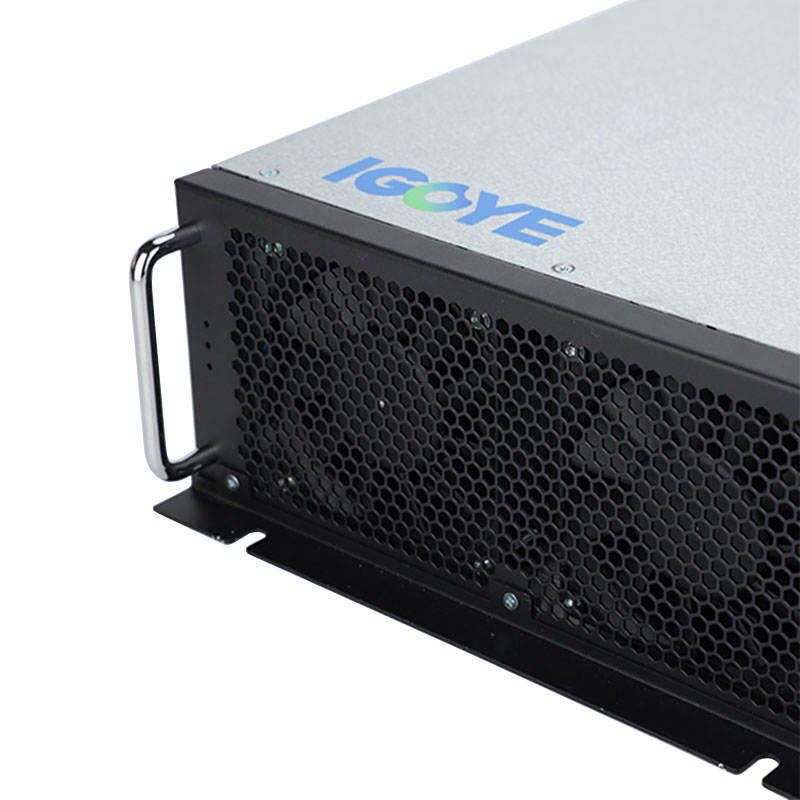

Kotahi-Tapa Pouaka Roopu-momo Kaihuri Ver

Ko te whakauru i te roopu-a-rohe o te Rohe-Tuiti Vect Verctor - Ko te otinga tino mo te whakatikatika i te mana o te mana me te kaha o te ao. I hangaia i Haina, kua hangaia tenei SVG ki te tuku mana pono, kaha ki te whakahaere mana nui mo te maha o nga tono ahumahi. Mena kei te hiahia koe ki te whakatika i te kaha o te kaha me te whakarite kia tohaina te mana, tono i tetahi korero i tenei ra!

Tuku Uiui PDF Tikiake

Whakaahuatanga Hua

Ko te roopu-a-rohe o te Rohe-Momo Taiao Ver Generator (SVG) e tuku ana i te utu hiko o te reanga mo te waahanga kotahi. Ma te whakamahi i te Whakahaere Mamati DSP + CPLD me te Maatauranga Whakawhanake Tere, e whakarato ana i te utu tika me te tere me te waa whakautu ki te iti iho i te 10ms. Ko te hoahoa o te rūnanga rūnanga e whakarite ana i te tiakitanga pakari me te whakauru i te whakaurunga mo nga taiao ahumahi. Kei te waatea i roto i te maha o nga kaha mai i te 5kvar ki te 55kvar, ka poipoia tenei SVG ki te kano rereke o te tono kotahi-waahanga.

Whakaahua Whakaahuatanga:

Korekahi	SVG	0.22	50k	/	2l	C
Waehere umanga	Kaihanga Va var Generator	Taumata ngaohiko 0.22: 220V	Te kaha o te whakatauranga (Kvar) 5/1 8/7/1/1 / 41 / 55kvar		2L: Kotahi-waahanga	C: CAMINT

Nga waahanga:

● Whakamahia te DSP + CPLD katoa te whakahaere i te mana mamati katoa, te hangarau Tohunga Tohunga e toru, algorithm ALGorithm me te rautaki mana a te PWM hei whakatutuki i te mana receactic.
● Whakapaihia te hoahoa mo te tauira, ko te whakahoahoa hononga hononga o nga waahanga maha, ka iti te waahi, he ngawari ki te mau tonu.
● Ko te hoahoa hanganga o nga roopu hau motuhake me nga whare putunga motuhake e whakarite ana i nga mahi pumau o nga taputapu.
● Te kawe i te utu hihiri ki te mana nui me te mana receactive, me te whakaoti i te raru kore e toru-waahanga i te wa ano.
● Ko te tere urupare hihiri ki te kawenga kei te taumata misilecond, ka tutuki i te utu hihiri me te tika mo te mana rective o nga kawenga o te paanga.

Tono:

Kotahi-Tapa Poto-TIKI nga kaikoti waikawa rereke e pai ana mo nga tono kotahi-waahanga e hiahiatia ana e te mana whakahaere pumau:

● Kotahi te Whakatikatika Mana Motuhake:Ko te whakapai ake i te mana hiko i roto i nga punaha kotahi-ira 220V, ka whakaheke i nga utu hiko me te arotau i te kaha o te punaha.
● Kotahi-Wahanga Taputapu Whakatakotoranga:Te whakapai ake i te mahinga me te whai hua o nga taputapu-waahanga kotahi ma te utu mo te tono mo te mana o te mana rective.
● Te kounga o te mana noho:Te whakapai ake i te kounga o te kaha ki nga tautuhinga noho ma te huri i te huringa rerehua me nga harmonics e pa ana ki nga kawenga reactio.
● Te whakahaere mana o te Ahumahi (te waahanga kotahi):Te whakarato i te tino uaua me te pai ake o te kounga kaha mo nga tukanga ahumahi maamaa e whakahaere ana i runga i te mana kotahi-waahanga.

Kotahi-Tapa Poto-momo Kaituhi Taiao Kaihautū e tuku ana i te otinga whai hua mo te whakahaere i te kounga kaha me te arotau i te kaha ki nga punaha hiko-kotahi.

Single-phase Cabinet-type Static Var Generator

Taputapu Hangarau:

	220v raupapa	380v raupapa		500v raupapa 500v		690v raupapa 690v
Teitei	<2000m, i runga ake i te 2000m, ka rite ki te GB / T3859.2
Te pāmahana pāmahana	-20 ~ + 50 ℃
Hākinakina whanaunga	≤90%, kaore he here i runga i te mata i te pāmahana iti o te marama te 25 ℃
Te Taumata Kore	Taumata III i raro
Ngaohiko whakahaere	Ac220v ± 20%	AC380V ± 20%		AC500V ± 20%		Ac690v ± 20%
Te mahi mahi	50hz ± 5%
Te utu utu mo te utu	5Kvar	15/35/50 / 7Kvarvar		90kvar		120kvar
Hanganga whakangungu	L / n	3p3w / 3p4w
Te maha o nga waahanga e hono ana i te rite	Ulimited
Te kaha o te miihini	≥97%
I runga i-atu i runga i-atu	32khz	16Khz		12.8khz		12.8khz
Whiriwhiringa Mahi	Te mana receactive	Receactive po wer, receaction po wer + imbalance
Te utu o te utu utu	≥99%	> 95%
Te wa whakautu katoa	<10ms
Turituri	≤60db	≤60db		≤65db		≤65db
Tikanga whakahaere	2-Way RS485 Atanga RS485 (Tautoko GPRS / WIFI)
Pare	Ko te taumaha, te raupaparorohiko / taputapu taputapu, te kaha ki te whakakao, te koretake o te mana, te wahanga, te aukati i te aukati, etc.		Ko te taumaha, te raupaparorohiko / taputapu taputapu, te whakakao i te ngoikore, te ngoikore o te nekehanga, te korenga o te mana, te whakakorekore, te aukati i nga tohu.

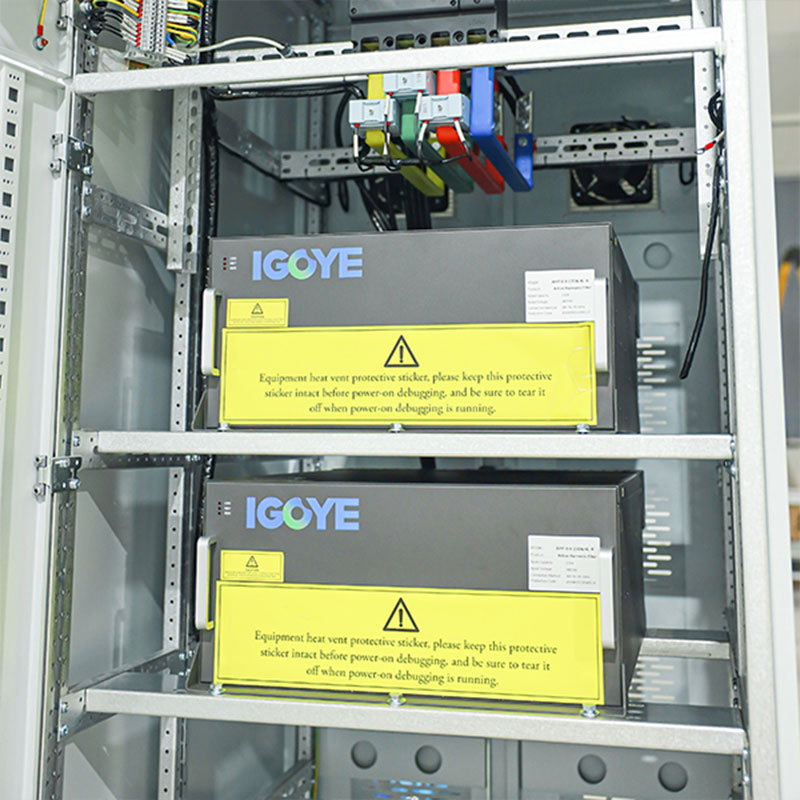

Tikanga tāutanga	Rack / taiepa				Hīkaka
Raimai Raina	Taumauru Taumai (momo rack), te uru o runga (te pakitara-kiki)				Raina taumai
Taumata tiaki	Ip20

Tauira & Tohu:

Single-phase Cabinet-type Static Var Generator

Tauira taputapu a te Kapene
Tau tauira	Te utu (Kvar)	Te Rauemi Pūnaha (v)	Nga Rahi (D * W * H)	Te tikanga whakamarumaru
Gy svg-0.4-200k / 4l-c	200	380 ± 20%	800 * 1000 * 2200mm	Whakamahana hau kaha
Gy svg-0.4-250k / 4l-c	250	380 ± 20%	800 * 1000 * 2200mm
Gy svg-0.4-300k / 4l-c	300	380 ± 20%	800 * 1000 * 2200mm
Gy svg-0.4-400k / 4l-c	400	380 ± 20%	800 * 1000 * 2200mm
Gy svg-0.5-270k / 4l-c	270	500 ± 20%	800 * 1000 * 2200mm
Gy svg-0.69-360k / 4l-c	360	690 ± 20%	800 * 1000 * 2200mm

Tohu wera: Kotahi-Tapa Pouaka Roopu-momo Kaihuri Ver
