690v pakitara-tuumotu harmonic had

Tikina te Tātaritanga Harmonic 690V i hangaia i Haina, te tuku i nga mahi me te pono o runga. Ka whakarato a Geya i nga otinga tino pai ki te ratonga tino. Ki te whiwhi i te utu pai rawa atu, waiho to kupu i raro nei, ka hoki mai ano ki a koe!

Tuku Uiui

Whakaahuatanga Hua

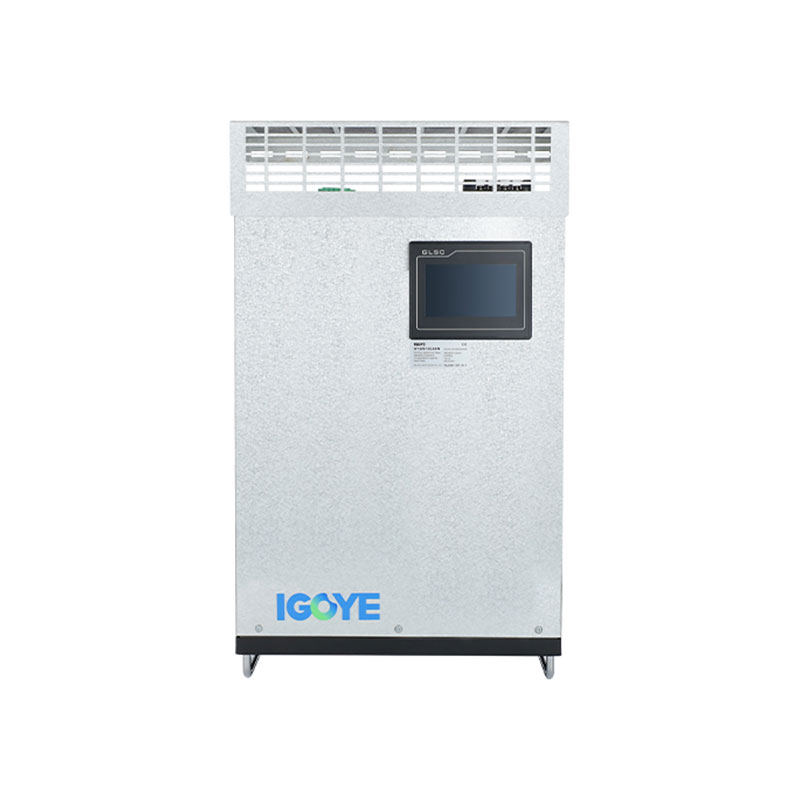

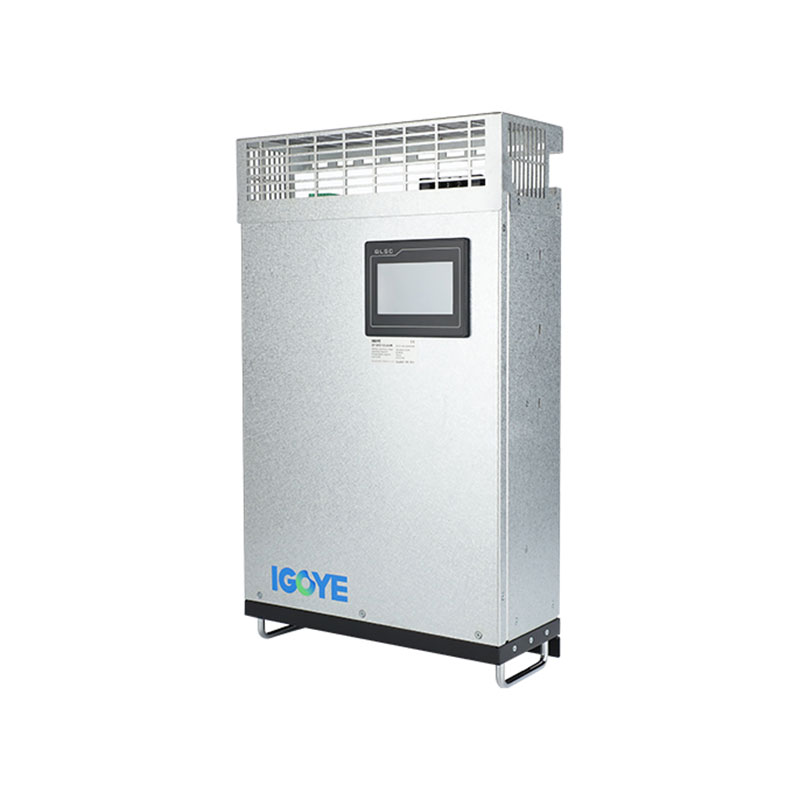

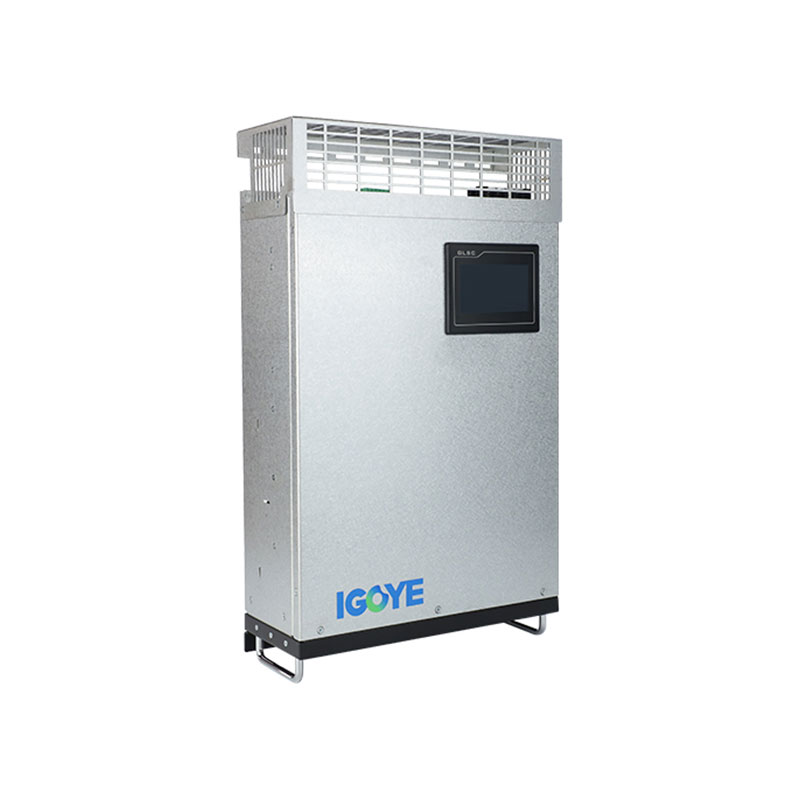

Ko te Tātari-Whakanoho-Whakanoho-Whakanoho-Whakahoahoa (AHF) e tuku ana i nga mahi harmonic e toru-waahanga 690V. Te whakamahi i te Whakahaere Mamati DSP + CPLD me te Topology e toru-taumata, ka whakarite tenei AHF i te utu o naianei. Ko tana hoahoa modular e tautoko ana i te whakaurunga o roto i te hononga rite, te whakarite i te tiaki me te arotau i te waahi. 690v Wall-Hist Ahf Tātari harmonics mai i te 2 ki te 50th ki te 50th, tae atu ki te tau 95% te reeti. Ki te 100a i whakaarahia ake me nga rahi o te 495mm x 675mm x 275mm (i tenei waahanga taiepa ka whakarato i nga rongoā kounga kaha mo nga taiao ahumahi-nui.

Whakaahua Whakaahuatanga:

Korekahi	Kānga	0.4	50a	/	4l	W
Waehere umanga	Te tātari harmonic kaha	Taumata ngaohiko 0.69: 690v ± 20%	Taumata Whakatau (Kvar) 100a		3L: e toru-waahanga e toru-waea 4L: E toru-waahanga wha-waea	W: Wall-Toited

Nga waahanga:

● Whakamahia te DSP + CPLD katoa te whakahaere i nga hangarau mamati katoa, te hangarau tototito e toru-taumata, te rapu algorithm algorithm me te rautaki a te pwm hei whakatutuki i te utu o te warmonic.
● Whakapaihia te hoahoa mo te tauira, ko te whakahoahoa hononga hononga o nga waahanga maha, ka iti noa te waahi, he ngawari ki te mau tonu.
● Ko te hoahoa hanganga o nga roopu hau motuhake me nga whare putunga motuhake e whakarite ana i nga mahi pumau o nga taputapu.
● Ka taea te tātari i te harmonics i roto i te maha o nga harmonics, mai i te 2 ki te 50 harmonics, ka whakaoti i te raru o te mutunga kore-waahanga i te wa kotahi.
● He tiketike te reeti tātari harmonic. Mena ka taea e te kaha, ka taea te utu o te tātari tupapaku i naianei kia rite ki te 95%. Tautuhi 100% te whakaputa i te waa hei whakarite kia pai te whakahaere mo nga taputapu.

Tono:

690V Ko nga whiriwhiringa o te taiepa kua eke ki te whakakao i te taimana e kaha ana ki te whakarite i te kounga kaha ki roto i nga tono-nui:

● Taiao ahuwhenua taumaha:Te whakamarumaru i nga taputapu taapiri me te pupuri i nga mahi pumau i roto i te maina, te hinu me te hau, me te hanga taumaha kei reira nga punaha 690V.
● Te taraiwa motuka-nui:Te whakaiti i te rereketanga kino i puta mai i nga motuka motuka nui, ko te whakapai ake i te kaha o te punaha me te whakaiti i te whakapau kaha.
● Nga punaha pūngao hou:Te heke o te kaha o te kaha me te whakaurutanga o nga rereketanga o te harmonic i whakauruhia e nga puna hiko whakahoutanga i roto i nga ahuatanga whakauru nui.
● He Hangarau Nui:Whakarato i te mana ma me te pumau mo te mahi whakahiatotanga nui i runga i nga punaha 690V, kia pai ai te mahi.

690v Ko nga whiriwhiringa o te taiepa kua eke ki te pakitara e whai hua ana me te pono ki te tono i nga tono ahumahi nui-nui.

690V Wall-mounted Active Harmonic Filter

Taputapu Hangarau:

	220v raupapa	380v raupapa	500v raupapa 500v		690v raupapa 690v
Teitei	<2000m, i runga ake i te 2000m, ka rite ki te GB / T3859.2
Te pāmahana pāmahana	-20 ~ + 50 ℃
Hākinakina whanaunga	≤90%, kaore he here i runga i te mata i te pāmahana iti o te marama te 25 ℃
Te Taumata Kore	Taumata III i raro
Ngaohiko whakahaere	Ac220v ± 20%	AC380V ± 20%	AC500V ± 20%		Ac690v ± 20%
Te mahi mahi	50hz ± 5%
Te utu o naianei	25A	25/50/75/100 / 150A	100A		100A
Hanganga whakangungu	L / n	3p3w / 3p4w	3p3w / 3p4w		3p3w / 3p4w
Te maha o nga waahanga honoa i roto i te rite	Ulimited
Te kaha o te miihini	≥97%
Hanganga whakangungu	32khz	16Khz	12.8khz		12.8khz
Utu utu	2 ~ 50timea, ka taea te whakarite i te reiti utu kotahi
Whiriwhiringa Mahi	Te mana receactive	Te mana receactive, te mana receactive + asymmetry
Te mana receactive Te utu utu	≥95%	> 92%
Te tātari kūora pakari		Ko te āheinga o te raina a-rohe e 3 nga wa o te waahanga tātari
Te wa whakautu katoa	<10ms	<40ms		<40ms	<40ms
Turituri	≤60db	≤60db		≤65db	≤65db
Tikanga whakahaere	2-Way RS485 Atanga RS485 (Tautoko GPRS / WIFI)
Pare	Ko te taumaha, te raupaparorohiko / taputapu taputapu, te kaha ki te whakakao, te koretake o te mana, te wahanga, te aukati i te aukati, etc.	Ko te taumaha, te raupaparorohiko / taputapu taputapu me te taapiri, te whakamahi i te ngoikore o te nekehanga, te korenga o te mana, te whakakorekore, te aukati i te waa poto
Tikanga tāutanga	Rack / taiepa		Hīkaka
Raimai Raina	Taumauru Taumai (momo rack), te uru o runga (te pakitara-kiki)		Raina taumai
Taumata tiaki	Ip20

Tauira & Tohu:

690V Wall-mounted Active Harmonic Filter

Tauira
Tau tauira	I tohua i te waa (a)	Te Rauemi Pūnaha (v)	Nga Rahi (D * W * H)	Te tikanga whakamarumaru
Gy APF-0.22-25A / 2L-R / W	25	220	220 * 330 * 160mm	Whakamahana hau kaha
Gy APF-0.4-25A / 4L-R / W / W	25	380 ± 20%	460 * 490 * 89mm
Gy APF-0.4-50A / 4L-R / W / W	50	380 ± 20%	460 * 490 * 89mm
Gy APF-0.4-75A / 4L-R / W / W	75	380 ± 20%	500 * 510 * 190mm
Gy APF-0.4-100A / 4L-R / W	100	380 ± 20%	500 * 550 * 240mm
Gy APF-0.4-150A / 4L-R / W / W	150	380 ± 20%	500 * 550 * 240mm
Gy APF-0.5-100A / 4L-R / W / W	100	500 ± 20%	495 * 675 * 275MM
Gy APF-0.69-100A / 4L-R / W / W	100	690 ± 20%	495 * 675 * 275MM
